SynergyXR Manager – User Manual
This user manual gives an introduction to SynergyXR Manager where users can manage all content stored on the Content Backend of SynergyXR called a Workspace.
Supported content in a Workspace:
- 3D models – in GLB and FBX file formats
- Pdf documents
- Images – in .PNG and .JPG file formats
- Videos – in .MP4 and .Mov file formats
Upload content to a Workspace

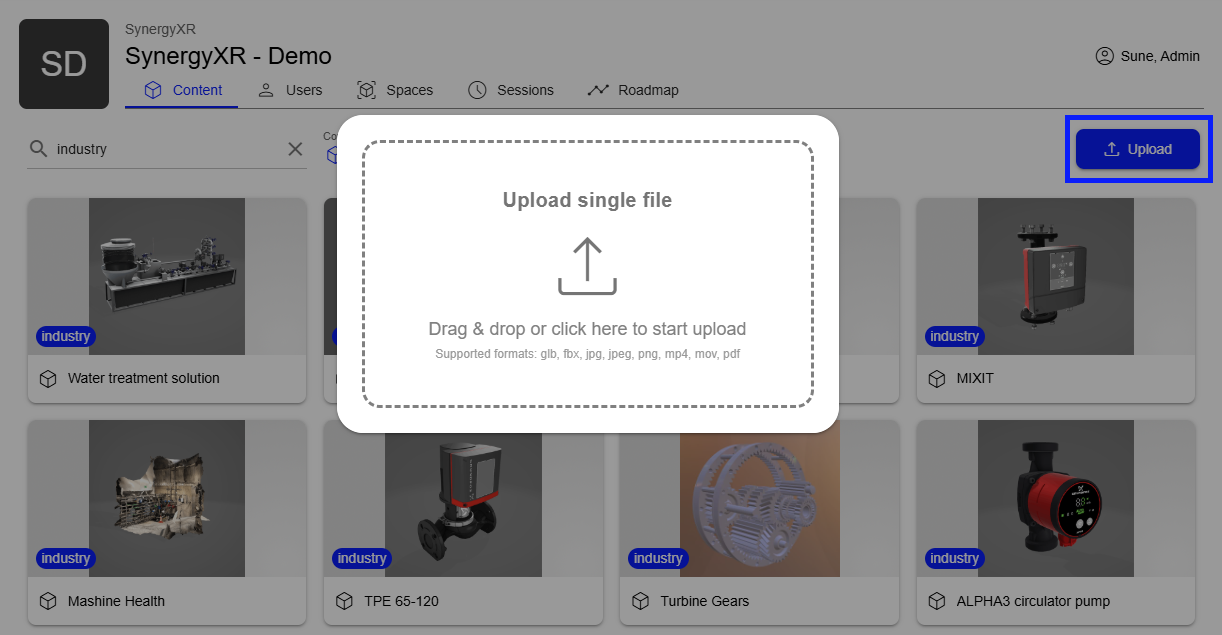

Click the Upload button on the right, then drag and drop to upload your new content.
Several actions are available – some mandatory and some optional
- Add tag – add at least one searchable tag to enable users to find the content in the SynergyXR applications – this is the only mandatory action
- Change file name, description and Web link
- Errors preventing upload will be shown. This could be the use of an invalid character in the file name, or too large file size
Once all changes have been made you can upload the content.
Organize content in a Workspace

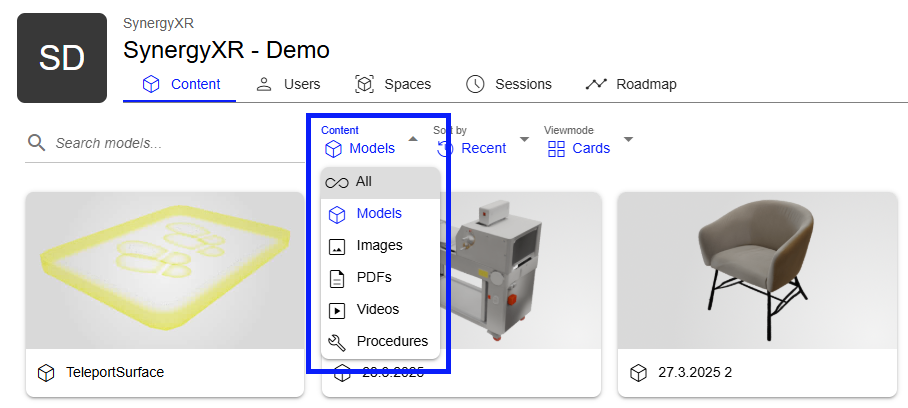

It is possible to filter the shown content based on content type (image, 3d models, pdf or video) by choosing content type in drop down menu:

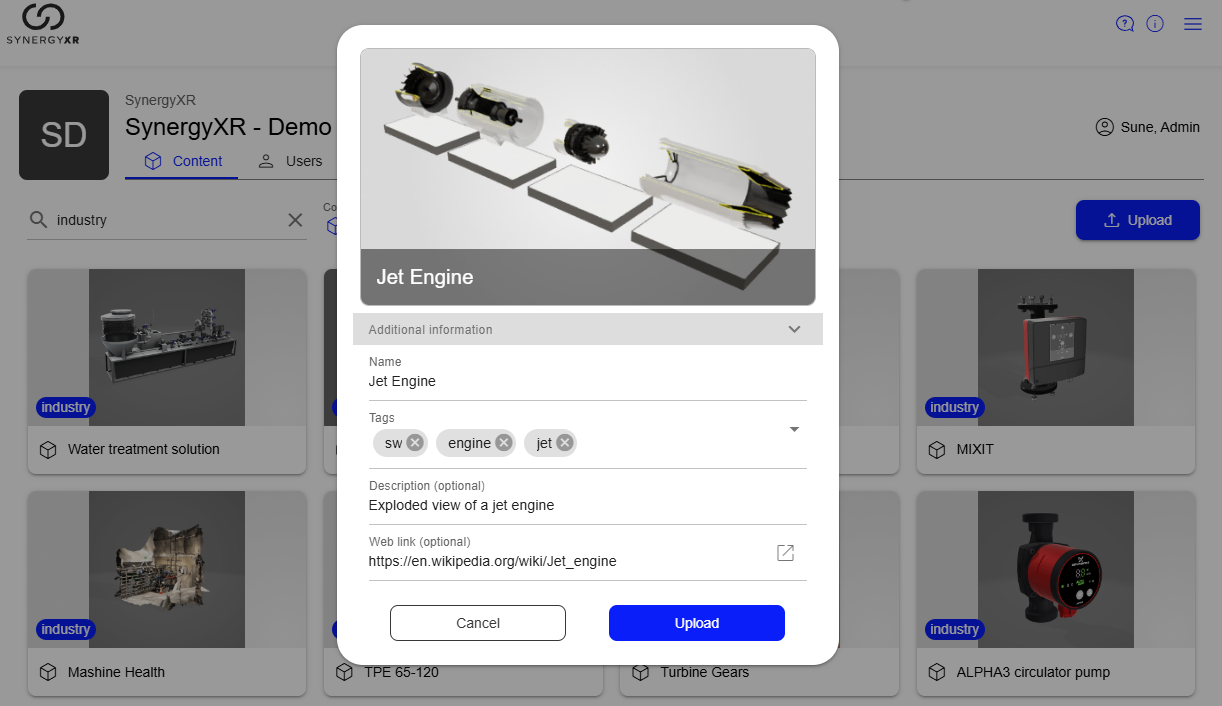

By clicking the edit button, additional content information can be accessed
The following details can be modified:
- File name – in the example above this is “ALPHA 32-40”. This is the name shown to users when browsing for content in one of the SynergyXR applications
- Description – a longer description giving more information about the content. This is shown to the user in SynergyXR mobile app.
- Web Link – link to e.g. product webpage. This can be accessed by the user in SynergyXR
- Tags – a list of one or more searchable tags. Additional can be added by typing in the “Tags" input field, while individual tags can be removed from the content by pressing the small ‘x’ on each tag.
All this information can freely be changed without any danger of compromising any applications. Other options are also available:
- In case there is a new version of the content, press the change file button
This will launch a Windows file browser enabling the user to browser for the updated file. It is only possible to update the content with the same file type. Updating content like this will automatically ensure that all places the content is used, the new updated version will now be shown to the user - It is possible to download the content locally to the PC by pressing the download button. This will launch Windows file browser enabling the user to specify where the downloaded file will be saved
It is also possible to delete content from the Workspace by pressing the delete button
Deleting content is irrevocable so please be careful when deleting content – it could potentially be used in an application without you knowing.
